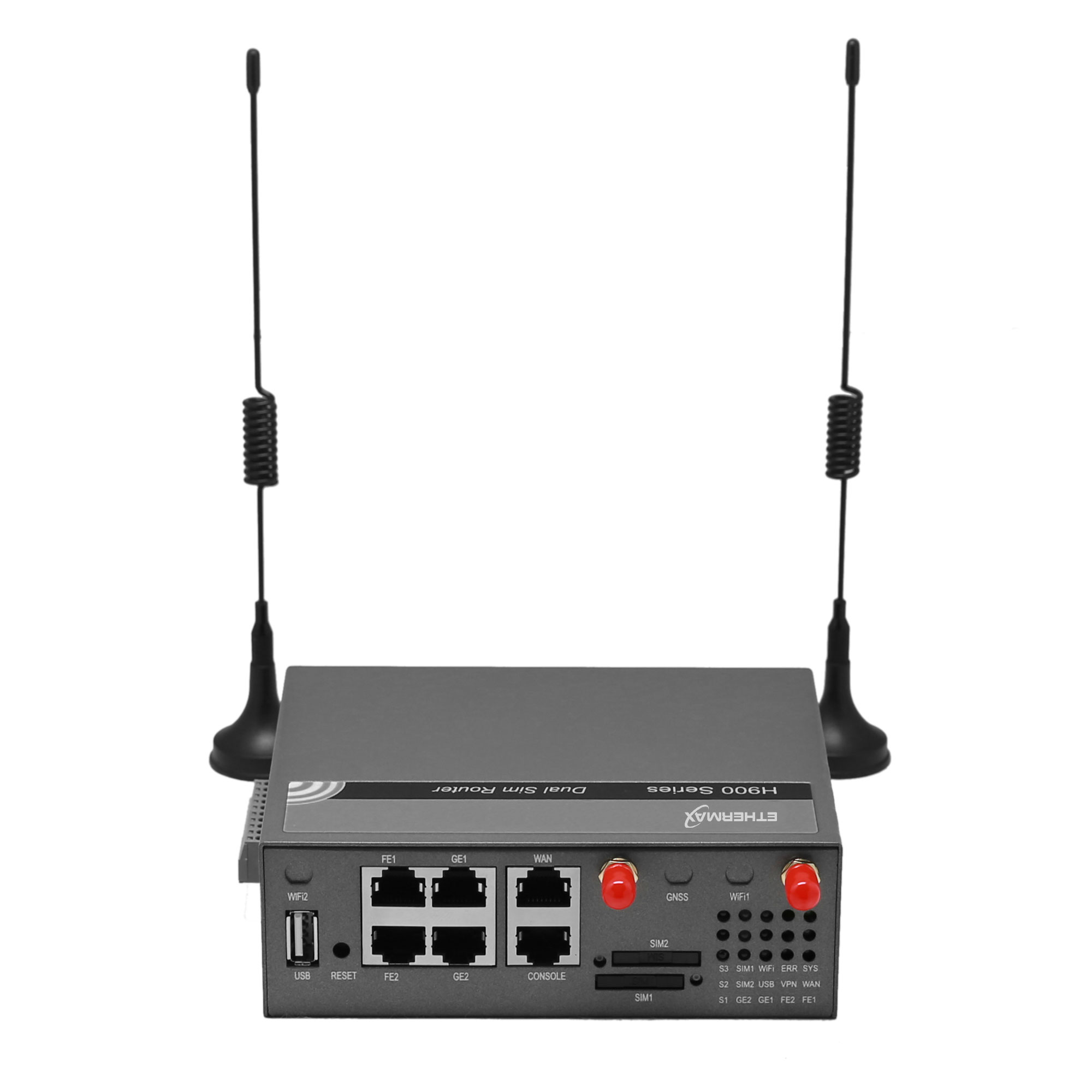

The Ethermax EMX900 Series is a compact, ruggedised Gigabit Ethernets 3G/4G/LTE router, with option feature of Dual/Tri Band Wi-Fi (2.4Ghz + 5Ghz) and dual SIM. It is qualified for M2M (Machine to Machine), IoT (Internet of Things) and In-Vehicle applications.
With an extensive list of safety and hardening certifications, the EMX900 is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, reverse polarity, and transient voltage, which is widely used in more than twenty industrial fields, such as CCTV security surveillance, vehicle, Telemetry, vending machines, power control, AMR, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.
- Multi-carrier 2G/3G/4G LTE support with Dual SIM card slot. 4G FDD LTE and TDD LTE
- Gigabit Ethernets
- Cellular/WAN RJ45/WiFi client failover and Load Balance (Bandwidth bonding)
- USB3.0 supported
- Supports LTE Advanced with SIM-based auto-carrier selection
- External antenna connectors for high gain antennas replacement
- MIMO supported
- Cloud-managed (with NMS network management system), TR-069, Web management, SMS, SSH/Telnet/Command, SNMP
- Dual-band or Tri-band, dual concurrent WiFi (802.11 a/b/g/n/ac, 2.4Ghz + 5Ghz), MU-MIMO WAVE2
- Certified 3G/4G enterprise/industrial grade internal modems
- Built-in transient and reverse polarity voltage protection, over-current and over-voltage protection
- 5-40V DC voltage input range (5-60V DC option), Dual Power Inputs / Power Failover
- POE passive is supported
- GPS / GNSS / Beidou supported
- Serial Ports * 1 or 2
- Console Port
- DI/DO port * 4
- Supports Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi
- Ruggedised to ensure always-on connectivity
- Create real-time alerts to monitor uptime
- Offer secure, guest WiFi to passengers
- Advanced security, VPN, and stateful firewall to protect sensitive data
- Robust Metal Case is ruggedised for vibration, shock, provide IP30 protection
- Desktop, Wall-mount and Din-rail mount of installation
